Is it possible to automate the cutting of mineral insulated cables?

Yes, there is a machine, that straightens and cuts the cables. It masters also ultra-sonic stripping and the cleaning of the inner conductor.

MI cable processing

SLIT, SAW, CUT AND BRUSH MI CABLES

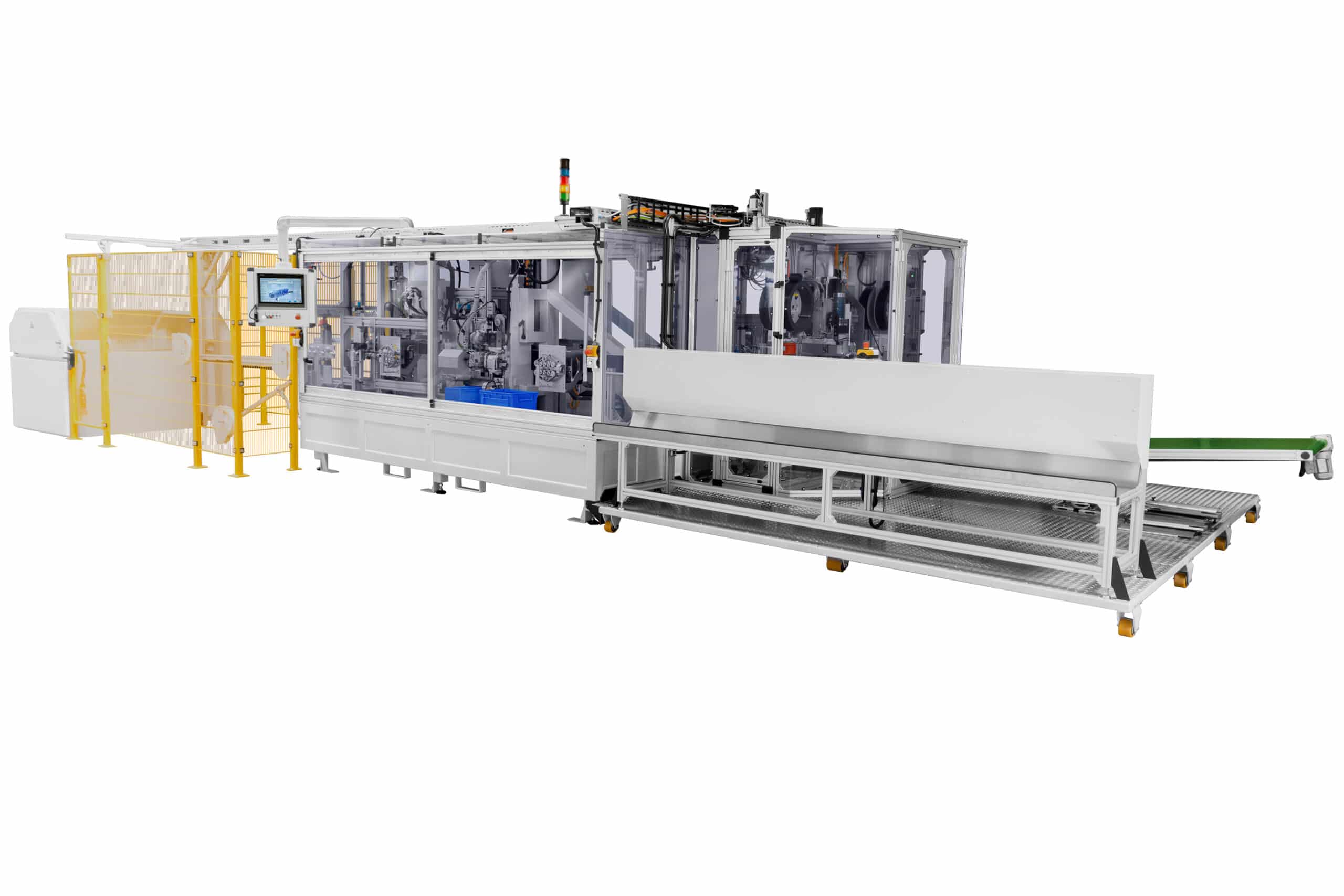

Fully automatic processing of mineral insulated cables

The perfect processing of MI cables is not possible with a standard machine. This is why Metzner has developed a pioneering process for the fully automatic mineral insulated cable stripping and processing of these cables for a leading supplier in the field of high-frequency plug connections.

The fully automatic machining process starts with a material-specific straightener station for aligning the unusually stiff cable wires. This alignment is an important prerequisite for the subsequent processing steps as well as for the subsequent further processing.

Microscopic quality inspection

Cutting to the inner conductor, stripping and cleaning the inner conductor. All in 1 step.

Full automation

Perfect straightening of the MI cables at the start of the process. Careful laying down

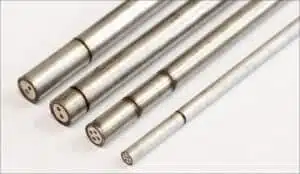

MI cable for critical applications

APPLICATIONS

Fully automatic MI-cable stripping, cutting and processing.

YOUR CUSTOMIZED SOLUTION

When it comes to processing cables, wires or hoses, Metzner only know solutions. How can we help you to increase your production quality even further and save costs in the process. Put us to the test:

Fully automated processing of mineral insulated cables

As the heart of the processing method, Metzner uses a newly developed stripping head that combines a rotary cut with a powerful clamping and simultaneous rotation of the material. This enables a high-precision, multi-stage radial cut through the various layers of these materials. Microscopic quality inspection confirms that the processing is perfect and shows neither scratches, pressure nor abrasion marks. In addition, the machinery also offers special precision: both the overall length and the machining position are maintained with an accuracy of 0.2 mm. The machine can process cable wires with diameters up to 28 mm. The processing steps include long slitting, sawing, circumferential cutting, stripping, brushing and depositing. An integrated ink jet printer labels the cable wires with information or markings which are necessary for further processing.
