AUTOMATIC CABLE CUTTING MACHINE UP TO 35 mm² | AWG2
The new Metzner AM 2000 series for precise automated wire processing up to 15 mm | 19/32" diameter
Like every Metzner automatic cable cutting machine, the Metzner AM 2000 series offers a clearly recognizable increase in performance. This gives you a wider range of applications, which in turn increases your investment security. The Metzner AM 2800 and AM 2850 effortlessly process cable cross-sections of up to 35 mm² | AWG 2 – as standard.

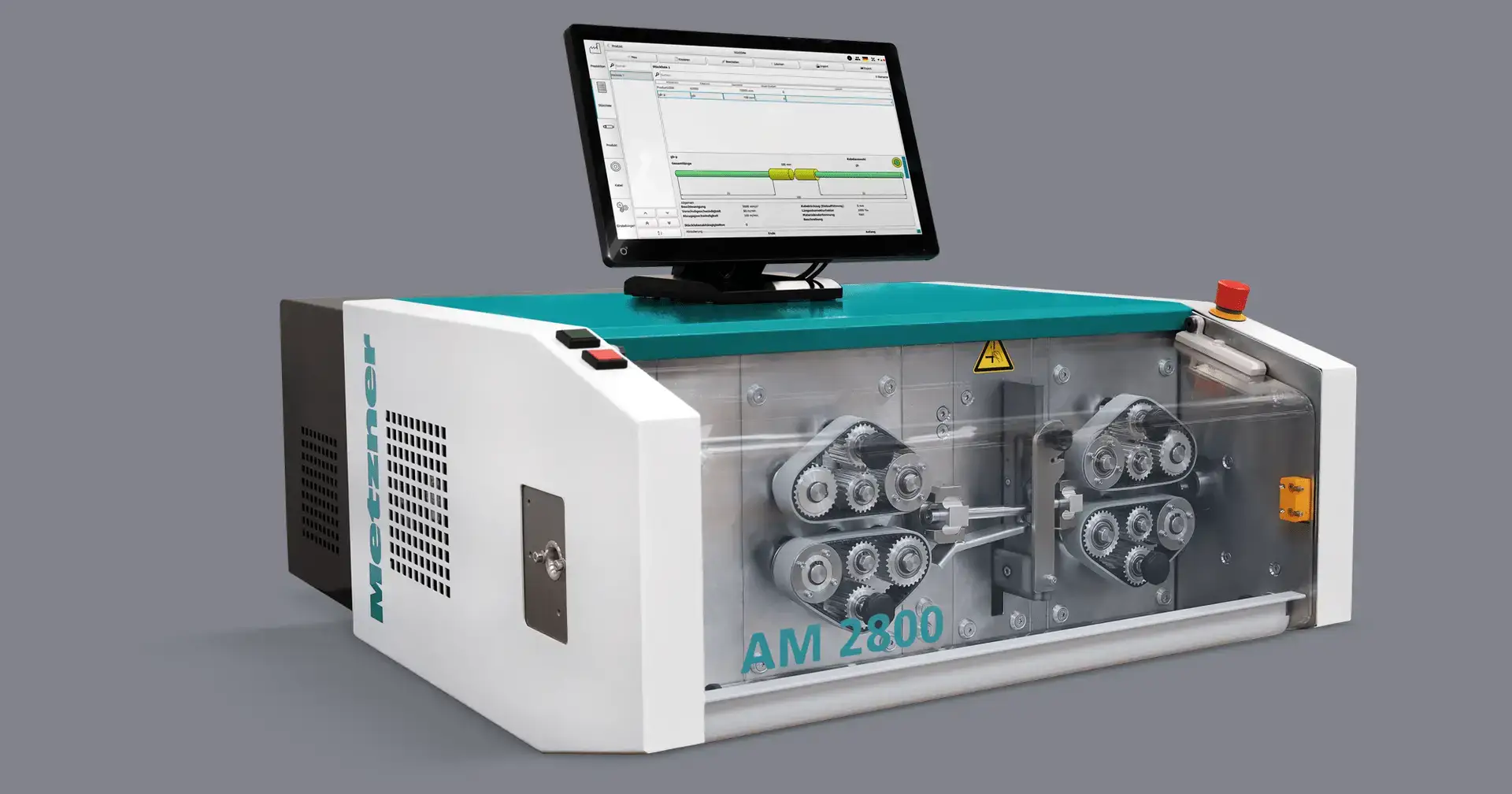

APPLICATIONS METZNER AM 2800
The Metzner AM 2800 automatic cable cutting machine and stripping machine can perform these tasks for you:
APPLICATIONS METZNER AM 2850
The Metzner AM 2850 automatic cable cutting machine and stripping machine can perform these tasks for you:
TECHNICAL DATA
| Functions/Programs | AM 2800 | AM 2850 |
| Rotary cutting unit | – |  |
| Cutting to length | | |
| Stripping with full pull-off | | |
| Stripping with partial pull-off | | |
| Multiple step stripping | | |
| Slitting | | |
| Multiple stripping | 3 layers on each cable side | 3 layers on each cable side |
| Flat cables | | |
| Material end detection | | |
| Cable length correction | | |
| Recipe data management | | |
| Length measurement system | option | option |
| Inner conductor stripping | option | option |
| Machine Parameters | ||
| Transport unit | belt | belt |
| Networking / MES interface (Industry 4.0) | option | option |
| Remote maintenance | PC integrated | PC integrated |
| Cable cross section stranded conductor | 0.5 mm² – 35 mm² | 21 AWG – 2 AWG | 0.5 mm² – 35 mm² | 21 AWG – 2 AWG |
| Max. outer diameter | 15 mm | 0.59″ | 15 mm | 0.59″ |
| Cable length | 20 mm – 200,000 mm | 0.79″ – 656 ‘ | 20 mm – 200,000 mm | 0.79″ – 656 ‘ |
| Max. Cable transport speed | 180 m/min. | 591 ft./min. | 180 m/min. | 591 ft./min. |
| Max. Stripping length full stripping | 1st side: 75 mm – 180 mm | 3″ – 7″ with tiltable discharge: 0 mm – 180 mm | 0″ – 7″ 2nd side: 0 mm – 145 mm | 0″ – 6″ | 1st side: 75 mm – 200 mm | 3″ – 8″ with tiltable discharge: 0 mm – 180 mm | 0″ – 7″ 2nd side: 0 mm – 145 mm | 0″ – 6″ |
| USB/Ethernet | | |
| Electrical connection | 230 V; 50 Hz or with transformer | 230 V; 50 Hz or with transformer |
| Pneumatic connection | 6 bar | 87 PSI | 6 bar | 87 PSI |
| Dimensions (L x W x H) | 710 mm x 920 mm x 350 mm | 28″ x 36″ x 14″ | 960 mm x 788 mm x 350 mm | 38″ x 31″ x 14″ |
| Screen | 15″ touchscreen | 15″ touchscreen |
More flexibility in cable processing - as standard and without paid extras
Both the AM 2800 and the AM 2850 are equipped with the innovative Metzner double knife cutting head as standard. The two pairs of blades enable you to carry out work processes that a machine with just one pair of blades cannot. Thanks to the double blade, for example, cutting to length, stripping and slitting are possible in a single step. V-blades for cutting to length and radius blades for a precise all-round cut in the insulation can also be combined. And the best thing about it: Metzner gives you this advantage at no extra cost.

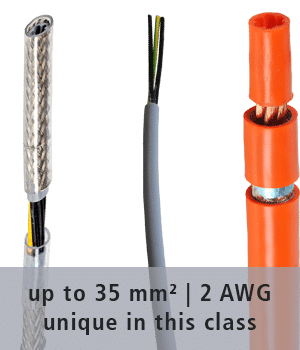

Over 50% more cable cross-section than comparable machines
Both models impress with a performance that stands out in their class: With a diameter of 15 mm | 19/32” and a cross-section of 35 mm² | AWG 2, you get significantly more than with other machines in this class. The motor achieves the necessary power effortlessly. This is because it is generously dimensioned by design, which naturally has a positive effect on the quality of the cutting result.
Floating belt and innovative rotary module
A completely new feature is the floating belt. It guides the cable gently and safely. The belt feed modules are also designed to enable a long effective length and high torque. The result is the perfect combination of smooth power transmission and high pull-off force.

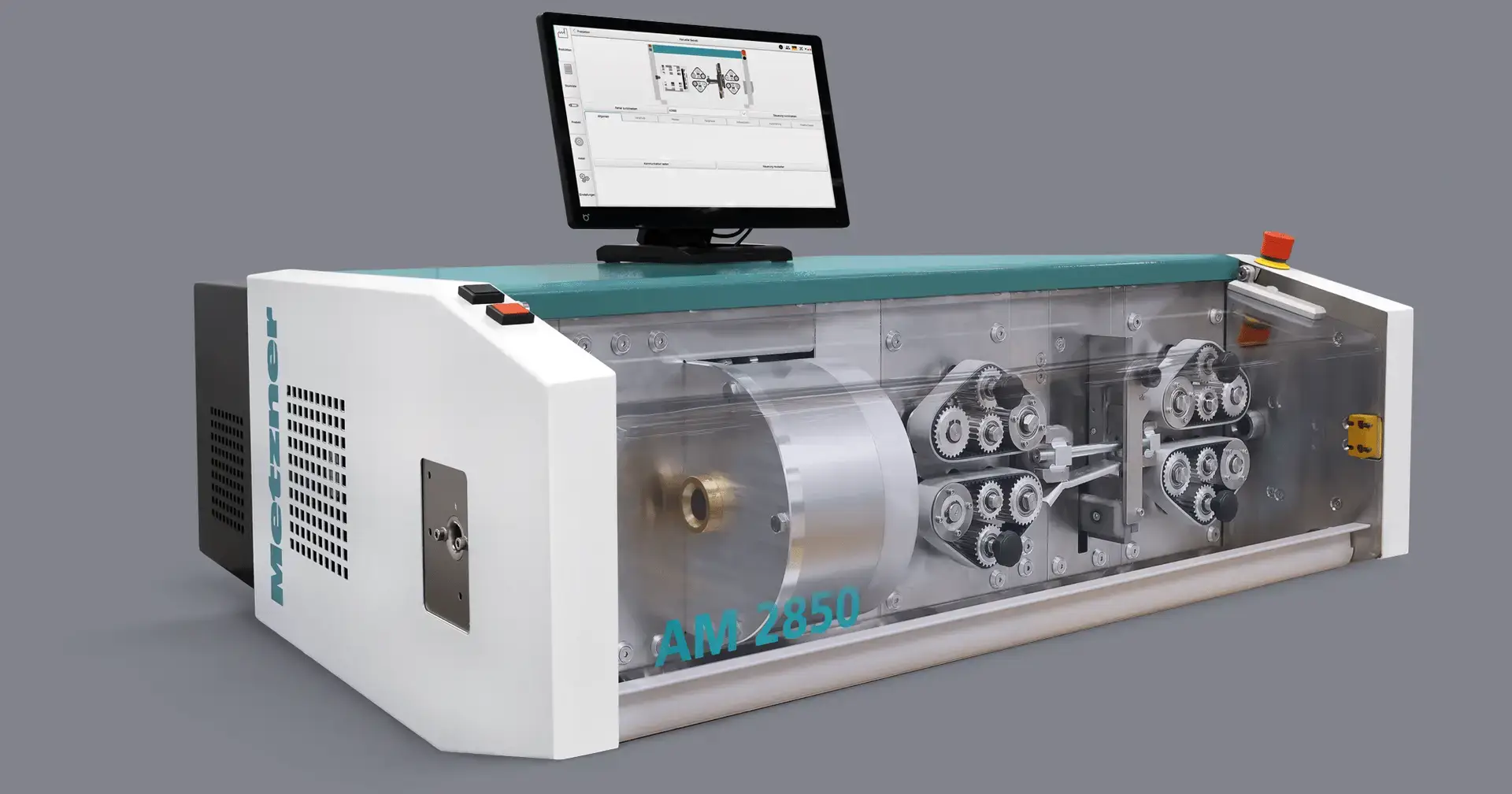

The Metzner AM 2850 also sets new standards in rotary machining. The completely newly developed rotary cutting head ensures high-precision and repeatable processing of multi-layered and complex cables such as coaxial cables.
Software included: everything you need for cable processing
The software of the Metzner AM 2000 series is designed according to the all-inclusive principle. Whether it is the connection of printers or peripheral devices, the automated processing of complex cable lists or integration into an MES system, the models in the AM 2000 series are already equipped for this works. No extra charge, no hidden costs.
Of course, the AM 2000 models follow the proven Metzner principle.The modular design makes the machine flexibly expandable and also enables individual adaptations. The modules and housing are easily accessible and therefore extremely easy to maintain.
