Are there ways to achieve savings in switch cabinet production?

Yes, definitely. You can automate the entire cable production process from the CAD data to the finished cable set. A Triathlon saves up to 70% through automatic cutting, stripping, crimping, printing and pre-sorting.

Can you fully automate the production of the wires for a switch cabinet?

Yes, Triathlon can do this for you. It imports the CAD data and cuts, strips, crimps, prints and pre-sorts the wires.

Which cross sections can be automatically produced with a Triathlon machine?

You can cut cross sections from 0.5 mm² | 21 AWG to 35 mm² | 2 AWG and crimp wires from 2.5 mm² | 14 AWG to 6 mm² | 10 AWG.

METZNER TRIATHLON 3000 +: UP TO 6 mm² CROSS SECTION

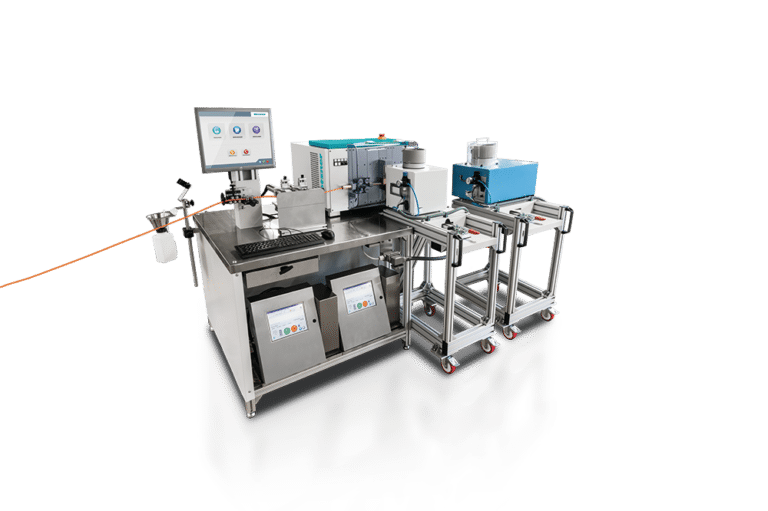

Metzner Triathlon 3000 + makes you the most flexible in automatic cabinet manufacturing

The Triathlon 3000 + expands your processing options – after all, it is the complete automation solution for switchboard construction. Because it uses a modular crimping unit, the maximum cross-section to be crimped is extended to 4 and 6 mm².

Solutions for the switchboard construction: Triathlon 3000 + with Metzner MA cable stacker

Significant cost reductions

Cutting and crimping and printing in black and with or color and sorting - everything fully automatic

1 fully automatic working step

100 switch cabinets per year with 500 or more wires means: break-even in less than 2 years

Savings up to 70%

Prints in black and white, in color or white backgrounds with black letters for cables up to 35 mm² or 2 AWG

Crimps up to 6 mm²

APPLICATIONS

The Metzner Triathlon 3000 + cuts the cables to length (0.5 mm² to 35 mm² | 21 AWG to 2 AWG), crimps cable ends up to 6 mm² | 10 AWG cross-section, prints and helps you automatize the switchboard construction.

TECHNICAL DATA

	TRIATHLON 3000 +
Cable outer diameter when cutting-to-length	max. 15 mm \| 0.6″
Cable cross section when cutting-to-length (depending on material)	0.5 mm² to 35 mm² \| 21 AWG to 2 AWG
Cable cross section when crimping (depending on material)	2.5 mm² \| 14 AWG (option: 4 mm² or 6 mm² \| 12 or 10 AWG)
Cable length min.	250 mm \| 9.8″
Cable length max.	999 mm \| 3.3″
Feeding speed max.	120 m/min. \| 394 ft./min.
Stripping length max. 1st side / 2nd side	220 mm \| 8.7″ / 170 mm \| 6.7″
Electrical connection	230 V; 50/60 Hz; 3.1 A or transformator
Compressed air connection	6 bar \| 87 PSI
Dimensions (L x W x H)	1,750 mm x 1,100 mm x 1,520 mm \| 68″ x 43″ x 59″

DOWNLOADS

Metzner Product Catalogue Cable and Corrugated Tube Processing

The Triathlon 3000 + extends your processing possibilities in switchboard construction. Thanks to its modular crimping unit, the maximum cross section to crimp is extended to 4 and 6 mm² | 12 AWG and 10 AWG.

Of course, also the Triathlon 3000 + offers all the advantages of the Triathlon series. According to the cabinet design, it cuts the cables to length, crimps those and prints either with an ink jet printer or thermo transfer printer. Prints can be done in two colors. The printer can also print a white background and black characters. Furthermore, the Triathlon 3000 + also pre-sorts the cables in their component groups.

In short, the Triathlon 3000 + is the perfect solution to automatize your switchboard construction and save up to 70 % costs.

Your personal contact is just 1 click away

Do you have any questions about the Metzner Triathlon 3000+? We will be happy to help you.

Click here
