METZNER DRC AND DRS: THE PERFECT WAY OF DEREELING

Dereelers for all packaging formats and different materials

We offer you a choice of six different passive dereelers for nearly every material. If you are looking for motorized dereelers, you will find it at our brand Ramatech.

You can combine the passive dereelers with an electrically driven pre-feeder.

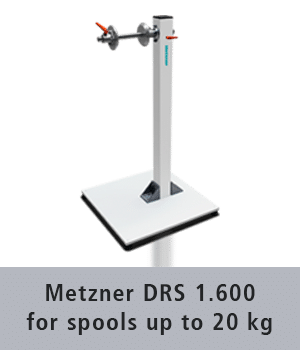

Metzner DRS 1.600 for spools up to 20 kg | 44.1 lbs and 250 mm | 9.8 width
Metzner DRS 2.850 for spools up to 850 mm | 2'9" outer diameter
Metzner DRS 3.1000 for drums up to 1,000 kg | 2,204 lbs and 600 mm | 2' width

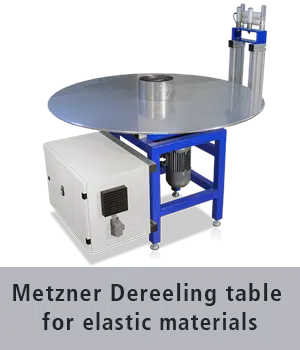

Metzner Dereeling table for wound and elastic materials. For coil diameters of 1,000 mm | 3'3"; 1,200 mm | 3'11" or 1,600 mm | 5'3"

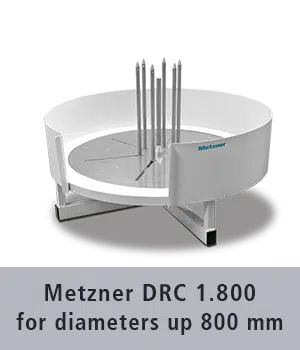

Metzner DRC 1.800 for spools up to 800 mm | 2'7" outer diameter. For flexible locations, also stackable

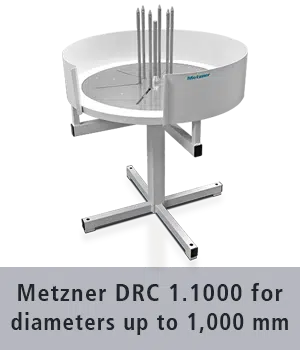

Metzner DRC 1.1000 for spools up to 1,000 mm | 3'3" outer diameter. For flexible locations

APPLICATIONS

All: Feeding of tubes, hoses or cables and other products of plastics or rubber with low tension
All: Feeding in applications with low acceleration

DRC series: Feeding from spools, coils, rings or wraps
DRS series: Feeding from spools and drums
Dereeling table: Feeding from coils

TECHNICAL DATA

	DRC 1.800	DRC 1.1000	Dereeling table	DRS 1.600	DRS 2.850	DRS 3.1000
Max. diameter of the uncoiling medium	800 mm \| 2’7″	1,000 mm \| 3’3″	1,600 mm \| 5’3″		850 mm \| 2’7″
Max. width of the uncoiling medium				550 mm \| 1’10”	850 mm \| 2’7″	890 mm \| 2’11”
Max. weight of the uncoiling medium	50 kg \| 110 lbs	50 kg \| 110 lbs	100 kg \| 220 lbs	20 kg \| 44 lbs	150 kg \| 331 lbs	1,000 kg \| 2,205 lbs
Electrical connection	–	–	230 V; 50 Hz or transformator	–	–	–
Dimensions (L x W x H)	1,000 mm x 1,000 mm x 1,300 mm \| 3’3″ x 3’3″ x 4’3″	1,200 mm x 1,200 mm x 1,300 mm \| 3′ 11″ x 3′ 11″ x 4’3″	1,400 mm x 1,300 mm x 1,050 mm \| 4’7″ x 4’3″ x 3’5″	600 mm x 600 mm x 1,085 mm \| 2′ x 2′ x 3’7″	1,200 mm x 1,000 mm x 1,000 mm \| 3’11” x 3’3″ x 3’3″	900 mm x 1,200 mm x 1,200 mm \| 2’11” x 3’11” x 3’11”
Weight	40 kg \| 88 lbs	50 kg \| 110 lbs	90 kg \| 198 lbs	60 kg \| 132 lbs	150 kg \| 331 lbs	80 kg \| 176 lbs

FUNCTIONS

Functions/Programs	DRC 1.800	DRC 1.1000	Dereeling table	DRS 1.600	DRS 2.850	DRS 3.1000
Feeding from coils
Feeding from spools			–
Feeding from rings			–	–	–	–
Feeding from wraps			–	–	–	–
Feeding from drums	–	–	–	–
Mechanical brake			–	–	–	–
Integrated drive	–	–		–	–	–
