IT'S A RUBBER, PLASTICS, FILM CUTTING MACHINE + MORE
Metzner ST-OB: The robust all-rounder with the fine adjustable contact pressure
can be adjusted very precisely
thanks to special cylinder

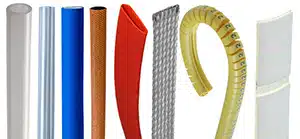

for rubber, plastics, films, cables, wire and much more
APPLICATIONS
As a universal cutting machine, the Metzner ST-OB processes many different materials. It is characterized by a particularly precise option that allows expert operators to adjust the pressure on the belt. In addition, a pneumatic cylinder developed in-house ensures that low-cut material is cut powerfully and precisely.
TECHNICAL DATA
| Performance data | ST-OB |
| Material dimensions: width max. | 150 mm / 65 mm | 5.9″ / 2.6″ |
| Material dimensions: height max. | 20 mm / 30 mm | 0.8″ / 1.2″ |
| Feeding speed max. | 60 m/min. | 197 ft./min. |
| Length interval | 0.1 mm | 0.004″ |
| Cutting rate/min. (at cutting length of 5 mm | 0.2″) | 150 |
| Typically repeatable exactness (depending on material) | +/- (1 mm | 0.04″ + 0.2% L) |
| Cutting technologies | |
| Punch cut | available |
| Shear cut | available |
| Draw cut | available |
| Blade cut | available |
| Technical data | |
| Electrical connection | 230 V; 50/60 Hz; 10 A or transformator 110 V |
| Compressed air connection | 6 bar | 87 PSI |
| Dimensions (L x W x H) | 700 mm x 400 mm x 650 mm | 2′ 3.6″ x 1′ 3.7″ x 2′ 1.6″ |
| Weight | 70 kg | 154 lbs |
| Equipment | |
| Controls | Schneider |
| Cylinder | Metzner specific |
| Control display | 5.7″ touch and color |
Metzner ST-OB is available with stamp cutting, shear cutting and tube cutting.This almost always involves low cross section material that is cut precisely and with high cutting forces. The spectrum ranges from the electrical and automotive industries to the production of blood bags, which is why it is also available in a stainless steel version.
Whether cutting film automatically or shaping rubber or plastic, the Metzner ST-OB always scores with a number of important technical features. Using a hand crank, the operator can very precisely set the pressure with which the material is fed to the blade via the feed belt. This allows the expert operator to react to differences in the batches or other conditions that require a pressure change.
Another special feature is the pneumatic cylinder specially developed by Metzner. This is optimized for both the cutting speed and the power of the machine. It also vents faster and therefore ensures a better cycle rate. It is available with punch-, shear and draw cut.
These features make the solid and durable Metzner ST-OB the first choice if you want an automatic rubber, plastics and / or film cutting machine.
COMPATIBLE WITH:
the DHS loop control system and the Octabin feeding station for tubes
